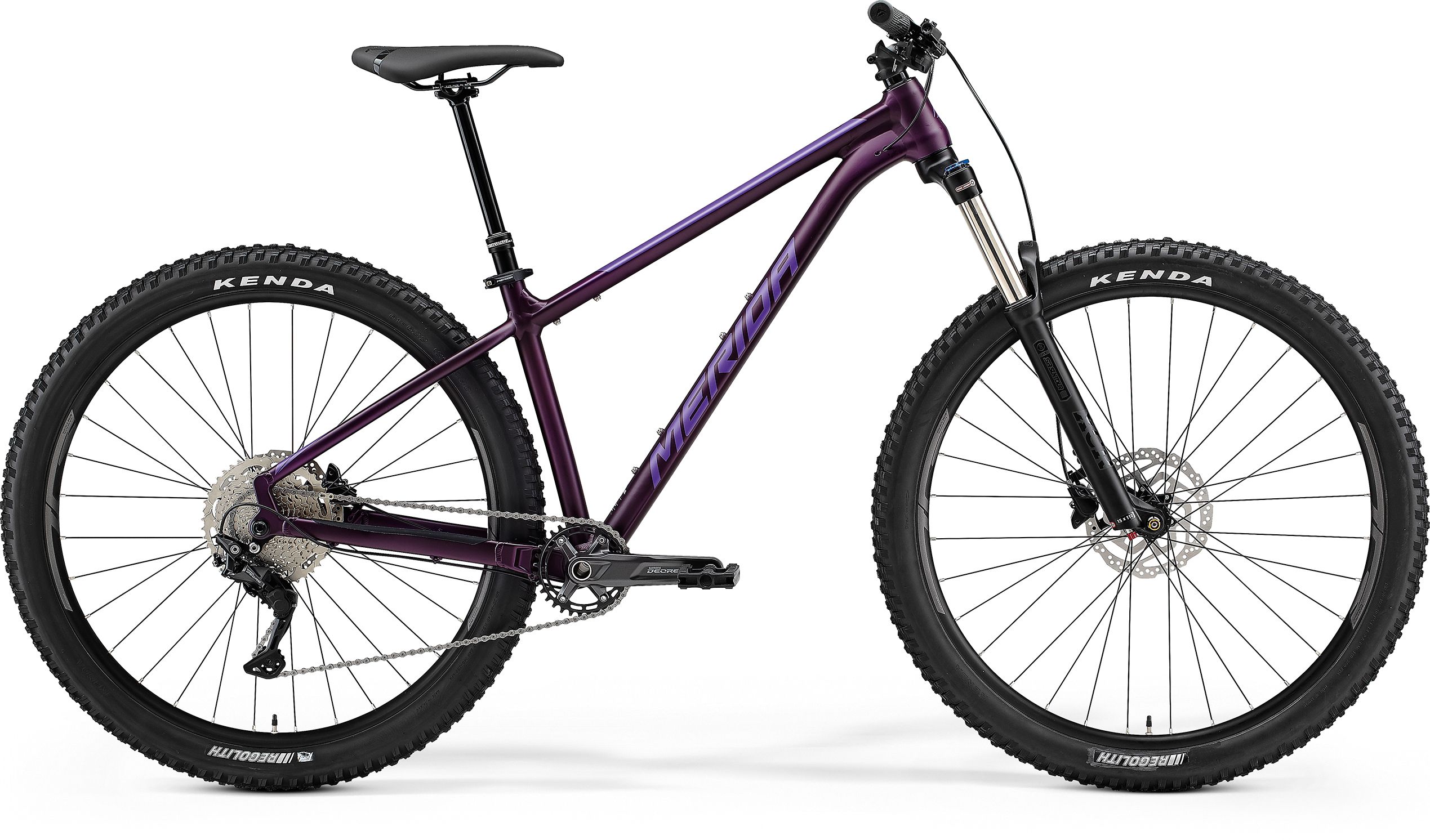

The Merida Big Trail has been a hit with the mountain bike press and trail riders alike. Bikeboard.cc confirmed that we nailed it, while MBR, IMB and many more confirmed that the Big Trail is firmly at the top of the trail hardtail game. Conversations between UK bike shops and Meridas German R & D team resulted in the development of a fun-packed and hugely capable bike. Trail bike geometry combined with a long travel 140 mm fork and grippy 2.4 wide 29er trail tyres make this the perfect companion for exciting trail sessions and demanding all-day rides over rough terrain.
29er aluminium hardcore hardtail with Suntour XCR34 140mm air fork, Shimano Deore 1 x 10 drivetrain and a dropper seat post.
Its perfectly suited to UK riding. The modern trail bike geometry has a slack enduro inspired 65.5° head angle, steep seat angle and a long reach. A short seat tube delivers a low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post. The geometry means most sizes work for most body sizes so riding style can be factored in. If you want to go crazy fast, take the longer size, for agility, take a shorter size. The Big Trail has hidden talents, in addition to two sets of bottle bosses, theres a trail mount under the top tube allowing you to carry tools and extra gear on the bike. Its also possible to fit mudguards and a rack if you want to trek further afield.
Highlights:
Frame |
TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max. tyre size 29 x 2.5 |
Fork |
Suntour XCR34 LOR; Air; 140mm travel; Tapered; lockout; 51mm fork offset. Max. tyre size: 29 x 2.4 |
Gears | 10 |
Shifters |
Shimano Deore M4100 with Shimano SL -MT500-IL lever |
Rear Derailleur | Shimano Deore M5120 Shadow+ |
Bottom Bracket | Shimano Deore |
Chain |
KMC X10 |
Chainset | Shimano Deore M5100; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL) |
Cassette | Shimano Deore M4100; 11-46 teeth; 10 speed |
Brake Lever |
Tektro HD-M275 |
Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor |
Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180 mm rotor |
Grip |
Merida EC |
Handlebar | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
Stem | Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 50mm (all sizes) |
Headset | Merida M4455 |
Pedal | VP Components VPE-891 |
Saddle |
Merida Comp SL; V-mount |
Seatpost | Merida Comp TR; 30.9mm diameter; in-line; Drop: 125mm (S), 150mm (M/L), 175mm (XL/XXL) |
Wheel Size | 29 |
Rims | Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
Spokes | Black Stainless |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
Rear Hub | Shimano MT400-B; 148x12mm; 32 spokes; Center lock; including removable lever with 6mm Allen key |
Front Tyre | Menda Regolith; 29 x 2.4; wire bead |
Rear Tyre | Menda Regolith; 29 x 2.4; wire bead |
